Características
GL100-N-TH
Registrador de datos con sensor de humedad / temperatura (-20-85ºC, 0.0-100.0% HR), memoria incorporada de 4.9MB, ranura de memoria micro-SD, interfaz USB para PC, pantalla LCD

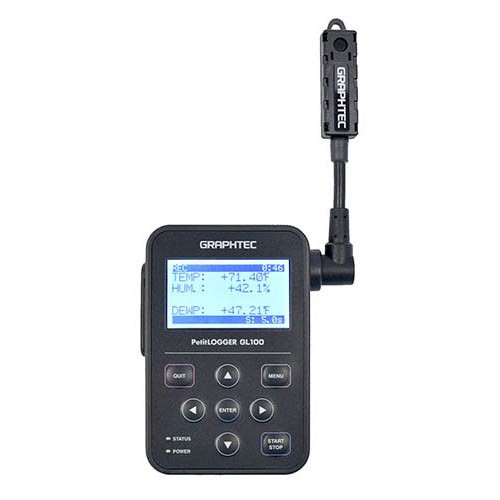

El Graphtec GL100-N-TH es un conjunto que viene con el registrador de datos compacto GL100-N y el sensor de humedad y temperatura GS-TH. Su cuerpo permite a los usuarios cambiar sensores y terminales para medir varias señales. La dimensión del cuerpo principal es un ligero de 2,6 pulgadas de ancho x 3,93 pulgadas de alto x 1,06 pulgadas de espesor (66 mm x 100 mm x 27 mm).
Funciona con dos baterías AA (no incluidas) o alimentación de bus USB (incluye cable USB MicroB-A incluido). Con una memoria integrada de 4,9 MB y una memoria externa a través de la ranura para tarjeta Micro SD, el cuerpo del GL100 también incluye un puerto USB (conexión Micro B).
La pantalla del GL100NTH es un monocromo retroiluminado con una resolución de 128 × 64 puntos que muestra los valores medidos y la configuración. Los datos grabados no se muestran en la unidad principal; Los datos capturados solo se pueden mostrar en la PC usando el software de aplicación incluido.
Características
- Este conjunto viene con el registrador de datos GL100-N y el sensor de humedad y temperatura GS-TH
- Captura de datos en tiempo real
- Visualice el valor de los datos capturados en la pantalla LCD en tiempo real y guarde los valores de monitoreo
- Soporta una variedad de medidas intercambiando el módulo de entrada
- Software para PC y dispositivo móvil inteligente disponible
- Software específico de la industria: agricultura, logística, energía.
- Memoria incorporada: 4.9 MB
- puerto de tarjeta de memoria microSD
| TEMPERATURE / HUMIDITY SENSOR, GS-TH | |||
| Item | Description | ||
| GS-TH | Relative Temperature and Humidity Sensor | ||
| Measurement Data | Temperature, Humidity, Dew Point Temperature (calculated value) Accumulated Temperature ºCh, Accumulated Temperature only recorded | ||
| Measurement Range | ±2G (20m/s2, ±5 (50m/s2, ±10 (100m/s2(Gravitational Acceleration 1G=approx. 9.807m/s | ||
| Measuring Method | C-MOS sensor | ||
| Range of Temperature Measurement | -20ºC to 85ºC | ||
| Temperature Measurement Degree of Accuracy | -20 ≤TS < 0 ±0.8(ºC) 0 ≤TS < 60 ±0.5(ºC) 60 < TS ≤85 ±0.8ºC |
||
| Range of Humidity Measurement | 0.0 - 100.0% RH | ||
| Humidity Measurement Accuracy | At 25ºC ±1.0% RH (0-10% RH) ±8% RH (10-20% RH) ±5% RH (20-80% RH) ±8% RH (80-90% RH) ±10% RH (90-100% RH) |
||
| Response Time (Temperature) | Temperature, Humidity: approx. 100 seconds to reach 63% at 25ºC with airflow speed of 1m/s(1) | ||
| Processor Functionality | Accumulated Temperature: 0 to 999,999kº ch(2) | ||
| Memory Capacity (Memory Mode) | 16 | 32 | 64 | 128k sample | ||
| Pre-trigger (Memory Mode) | OFF/10 | 25 | 50 | 100% of selected memory | ||
| Sampling Interval | 0.5 | 1 | 2 | 5 | 10 | 20 | 30 sec 1 | 2 | 5 | 10 | 20 | 30 | 60 min |
||
| Alarm | OFF/level | ||
| Temperature Unit of Denomination | ºC/ºF (selectable) | ||
| Waterproofing | Waterproof protection filter at the connection point. | ||
| Operating Environment | Within range of Temp/Humidity measurement. | ||
| External Dimensions | 15mm x 45mm x 10.2mm (excludes protrusion) | ||
| Weigh | Approx. 14g (0.49 oz) | ||
| GL100-WL, GL100-N MAIN UNIT SPECIFICATIONS | |||
| Number of channels | Varies by the input module used, and measurement type is fixed with each input module | ||
| Output signal | Alarm (1 channel), solid state switch with optical isolation (Optocoupler, Max. load is the 30 V, 50 mA) | ||
| Interface to PC | USB (micro USB B type connector), Wireless LAN (WLAN) in GL100-WL | ||
| Wireless LAN (in GL100-WL) | Standards: IEEE802.11b, Communication distance: approx. 40 m | ||
| Storage device | Built-in memory: RAM (Approx. 4.9 MB) External memory: microSD memory card | ||
| Display | LCD (backlit monochrome, graphical type 128 x 64 dots) Contents: Captured data and Setting menu (Stored data is not able to replay. It is able to replay using the PC application software.) | ||
| Functions | • Real-time data capturing • Display the captured data value to the LCD in real-time and save the monitoring values • Set conditions using the Menu setting While using USB port: • Output captured data in real-time • Output the saved data from the internal memory • Full control of the GL100 from the PC application software While using Wireless LAN (in GL100-WL): • Output the saved data from the internal memory • Full control of the GL100 from the PC application software • Simple control of the GL100 from the application software of Smart Device • Send warnings via the e-mail |
||
| Alarm | • Action Outputs the signal when the measuring data reaches the present conditions of alarm • Source Level of measuring data • Detecting method Condition: Higher or lower (signal is higher or lower than the threshold) Combination: OR |
||
| Trigger | • Action Start or stop the recording of captured data by trigger • Source Start trigger: OFF, Level (*), Alarm, or Date Stop trigger: OFF, Level (*), Alarm * Level trigger is available in the analog input of the GS-4VT, GS-4TSR, and GS-3AT module. • Detecting method of the Level (*) Condition: Rising or Falling (signal is passed through the threshold) Combination: OR or AND |
||
| Dustproof and waterproof | IP54 compatible (*) * It is effective only in the condition that the input module is set to the GL100 and then the covers of connector and battery are closed. It is recommended to replace the packing of cover in periodically |
||
| Power source | • Alkaline battery (AA size x 2) • USB bus-power (5V, 200 mA) (*) * When AC adapter for USB device is used, the required power capacity is 5V, 1A. Battery and AC adapter is not included. |
||
| Operating environment | Temperature: -10 °C to 50 °C Humidity: up to 80 % RH (non condensed) |
||
| External dimension [W x D x H] | Approx. 66 x 100 x 27 mm (exclude protrusion) | ||
| Weight | GL100-N: Approx. 125 g, GL100-WL: Approx. 130 g | ||
