GL840-WV

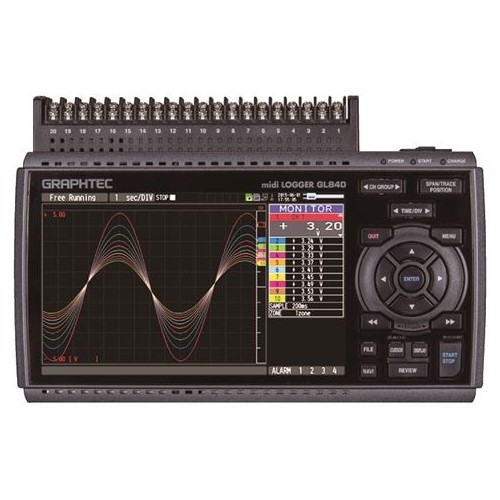

El Graphtec GL840WV es un registrador de datos de alta calidad de 20 canales que se puede expandir hasta 200 canales en total. Cada canal está aislado. Esta unidad es adecuada para muchas aplicaciones, incluida la medición de temperatura con múltiples canales. La pantalla a color integrada de 7 pulgadas proporciona una experiencia de visualización de datos intuitiva. Aunque este sistema está diseñado como una unidad independiente, se puede conectar a una PC si es necesario.
El GL840WV está diseñado para aplicaciones que requieren pruebas de medición de alta prescisión y alto voltaje. Si bien el rango de voltaje de entrada es el mismo en GL840M y GL840WV (20 mV a 100V), el voltaje máximo sostenido de hasta 1 minuto es mayor. El GL840WV puede soportar hasta 300Vp-p en lugar de los 60Vp-p del GL840M. La precisión también es más precisa en el GL840WV en un 0,05%.
El GL840WV ha sido diseñado con un sistema de entrada extremadamente aislado que garantiza que todas las señales no se vean afectadas por el ruido del canal exterior. Con esta capacidad, este sistema se puede utilizar para una variedad de aplicaciones que incluyen voltaje, humedad, temperatura, pulso y lógica.
El GL840WV viene de serie con 20 canales de entrada analógica, pero se puede expandir fácilmente hasta 200 canales al agregar la base de terminal de extensión de 20 canales opcional (B-566) y otras unidades de terminal de entrada (B-564 o B-565)
Características
- Capacidad de LAN inalámbrica | monitoreo remoto y registro de datos
- Sistema de entrada flexible para una amplia gama de aplicaciones | RTD, T / C
- Ampliable a 16 canales digitales totales con actualización opcional
- Posibilidad de acceder a sensores y adaptadores (GL100) adicionales
- Capacidad de memoria extendida usando la tarjeta de memoria SD
- Intervalo máximo de muestreo de hasta 10 ms.
- Acceso a smartphone
| Item | Description | ||
| Model number | GL840-WV | ||
| Number of analog input channels | 20 channels in standard configuration, Expandable up to 200 channels | ||
| Number of analog input terminals | Up to 10 terminals (20 channels / terminal), standard config: 1 | ||
| Type of analog input terminal | Multi-input type, Withstand-voltage type | ||
| Port for digital sensor | 1 port for the sensor/input terminal/adapter of the GL100 | ||
| External input/output | Input | Trigger or Sampling (1 channel), Logic/Pulse (4 channels) | |
| Output | Alarm (4 channels) | ||
| Sampling interval | 10 ms to 1 hour (10ms to 50ms: voltage only), External signal | ||
| Time scale of waveform display | 1 sec. to 24 hour /division | ||
| Trigger, Alarm function | Trigger action | Start or stop capturing data by the trigger | |
| Repeat action | Off, On (auto rearmed) | ||
| Trigger source | Start: Off, Measured signal, Alarm, External, Clock, Week or Time Stop: Off, Measured signal, Alarm, External, Clock, Week or Time |
||
| Condition Setting | Combination: OR or AND Analog signal: Rising (High), Falling (Low), Window-in, Window-out Logic signal: Pattern (combination of each input signal in high or low) Pulse (number of count): Rising (High), Falling (Low), Window-in, Window-out |
||
| Alarm output | Outputs a signal when alarm condition occurs in the input signal/td> | ||
| Pulse input function | Rotation count (RPM) mode | Counts the number of pulses per sampling interval and converts to rpm (rotations per minute), Number of pulses for one rotation can be set to 50, 500, 5000, 50k, 500k, 5M, 50M, 500M rpm/F.S. (rpm./Full Scale) | |
| Accumulating count mode | Accumulates the number of pulses from the start of measurement 50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale) | ||
| Instant count mode | Counts the number of pulses per sampling interval 50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale) | ||
| Maximum number of pulse inputs | Maximum input frequency : 50kH Maximum number of count : 50kC/sampling (16-bit counter) |
||
| Calculation function | Between channels | Addition, Subtraction, Multiplication, and Division for analog input | |
| Statistical | Select two calculations from Average, Peak, Maximum, Minimum, RMS | ||
| Search function | Search for analog signal levels, values of logic or pulse or alarm point in captured data | ||
| Interface to PC | Ethernet (10 BASE-T/100 BASE-TX), USB (Hi-speed), WLAN (using B-568 option) | ||
| Storage device | Internal | Built-in 4GB Flash Memory | |
| External | One SD card slot (Support SDHC memory card, up to 32GB) | ||
| Saved contents | Captured data, Setting conditions, Screen copy | ||
| Capturing mode | Mode: Normal, Ring, Relay Ring: Saves most recent data (Number of capturing data: 1000 to 2000000 points) Relay: Saves data to multiple files without losing data until dada capturing is stopped |
||
| Replay data | Replays captured data that was saved in the GL840 (in GBD or CSV format) | ||
| Scaling (Engineering unit) function | Measured value can be converted to specified engineering unit Analog voltage: Converts using four reference points (gain, offset) Temperature: Converts using two reference points (offset) Pulse count: Converts using two reference points (gain) |
||
| Action during data capture | • Displaying past data (using dual display mode (Current + Past data)) • Hot-swapping the SD memory card • Saving data in between cursors |
||
| Display | Size | 7-inch TFT color LCD (WVGA: 800 x 480 dots) | |
| Language | English, French, German, Chinese, Korean, Russian, Spanish, Japanese | ||
| Information | Waveform in Y-T with digital values, Waveform only, Digital value, Digital values and statistics values | ||
| Operating environment | 0 to 45 ºC, 5 to 85 % RH (non condensed) (When operating with battery pack 0 to 40 ºC, charging battery 15 to 35 ºC) | ||
| Power source | AC adapter | 100 to 240 V AC, 50/60 Hz (1 pc of adapter is attached as standard accessory) | |
| DC power | 8.5 to 24 V DC (DC drive cable (option B-514) is required) | ||
| Battery pack | Mountable two battery packs (battery pack (option B-569): 7.2V DC, 2900mAh) | ||
| Power consumption | Max. 38 VA | ||
| External dimensions (W x D x H in mm, Excluding projections) | Approx. 246 x 170.4 x 58.2 (with the cover) | ||
| Weight | Approx. 1244 g (the cover is attached) | ||
