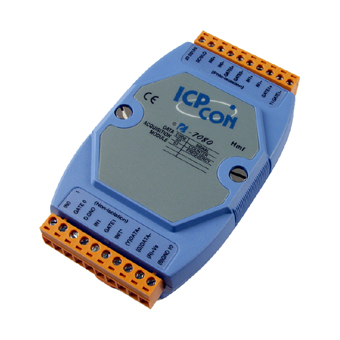

I-7080

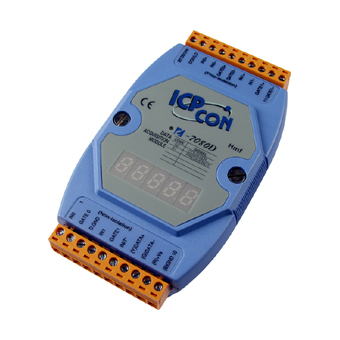

I-7080D
I-7080
I-7080D
Comprar
El I-7080 se diseña inteligentemente para proporcionar supervisión del sistema de condicionamiento de señales y ajustes seguros. El I-7080 es una solución rentable para una amplia gama de señales y valiosos sistemas de control industriales. La interfaz de comunicaciones es protocolo modbus vía RS-485. Los usuarios pueden montar los módulos en un Riel-DIN, panel o pared. Los módulos tienen un bloque de terminal de tornillos para conectar con las señales.

Counter Input

Channels 2 independent 32-bit counters, counter 0&1
Input Type Isolated or non-isolated
Isolation Input Level Logic level 0:+1V max.
Logic level 1: +3.5 to 30V
Isolation Voltage 3750Vrms
Non-Isolated Input Level
(Programmable) 		Logic level 0: 0 to +5V (default= 0.8V)
Logic level 1: 0 to +5V (default= 2.4V)
Maximum Count 32bit (4,294,967,295)
Programmable Digital Noise Filter 2us to 65ms
Alarming alarm on counter 0 or counter 0 & 1, programmable
Counter Preset Value programmable

Frequency Measurement

Input Frequency 1Hz to 100KHz max.
Gate Time 1.0 or 0.1sec, programmable

Digital Output

Channels 2
Output Type Source, Open-Collector
Output Voltage 30V max.
Output Current 30mA max

Interface

Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
5-digit readout, Channel 0 or Channel 1 (for I-7080D)

Power

Input Voltage Range 10~30VDC
Power Consumption 2.0W (max.)(I-7080) / 2.2W (max.)(I-7080D)

Environment

Operating Temperature -25 to 75°C
Storage Temperature -40 to 85°C
Humidity 5 to 95%, non-condensing
